Get Start

Get Start

Download Package

https://github.com/goharbor/harbor/releases

wget https://github.com/goharbor/harbor/releases/download/v2.2.1/harbor-offline-installer-v2.2.1.tgz
gpg -v -d harbor-offline-installer-v2.2.1.tgz.asc #校验

Deploy

  1. 解压
  2. 配置
  3. 可配置项目：域名、登录密码、访问方式为 http 还是 https、数据存储目录等
     [0 root@vps apps]# tar -xf /opt/harbor-offline-installer-v2.2.1.tgz
 [0 root@vps apps]# cd harbor/
 [0 root@vps harbor]# cp harbor.yml.tmpl harbor.yml
  4. 生成与配置 https
    # 方法1，手动生成
## 生成CA证书
openssl req -newkey rsa:4096 -nodes -sha256 -keyout ca.key -x509 -subj "/CN=harbor.domain.io" -days 365 -out ca.crt
# 生成harbor主机的证书申请
openssl req -newkey rsa:4096 -nodes -sha256 -subj "/CN=harbor.domain.io" -keyout harbor.domain.io.key -out harbor.domain.io.csr
## 给harbor主机颁发证书
openssl x509 -req -in harbor.domain.io.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out harbor.domain.io.crt

# 方法2，使用官方的证书生成方式 https://goharbor.io/docs/2.2.0/install-config/configure-https/
docker run -v /:/hostfs goharbor/prepare:v2.1.0 gencert -p /apps/harbor/certs
  5. 添加证书
    cat harbor.yml
hostname: harbor.domain.io

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 80

# https related config
https:
  # https port for harbor, default is 443
  port: 443
  # The path of cert and key files for nginx
  certificate: /data/secret/certs/harbor.domain.io.crt
  private_key: /data/secret/certs/harbor.domain.io.key
  6. 测试启动
    # ./install.sh  #初始化加载即启动
# docker-compose down  #关闭服务
# ./prepare  #修改配置文件后需要重新同步更新配置文件
  7. 配置 harbor 自启动/systemd 管理
    # 方法1： 简单设置为开机启动
echo '/apps/harbor/usr/bin/docker-compose restart' >> /etc/rc.local
chmod +x /etc/rc.local

# 方法2：使用systemd管理
cat /lib/systemd/system/harbor.service
[Unit]
Description=Harbor
After=docker.service systemd-networkd.service systemd-resolved.service
Requires=docker.service
Documentation=http://github.com/vmware/harbor
[Service]
Type=simple
Restart=on-failure
RestartSec=5
ExecStart=/usr/bin/docker-compose -f /apps/harbor/docker-compose.yml up
ExecStop=/usr/bin/docker-compose -f /apps/harbor/docker-compose.yml down
[Install]
WantedBy=multi-user.target

[root@harbor ~]#systemctl daemon-reload
[root@harbor ~]#systemctl enable --now harbor
  8. 客户端使用
  9. docker客户端如果配置中添加了insecure-registary配置，就不需要在docker 客户端配置上对应证书
  10. 如果不配置就需要在/etc/docker/certs.d/目录中添加对应证书才能正常登录 https://www.cnblogs.com/firewalld/p/14684565.html

配图

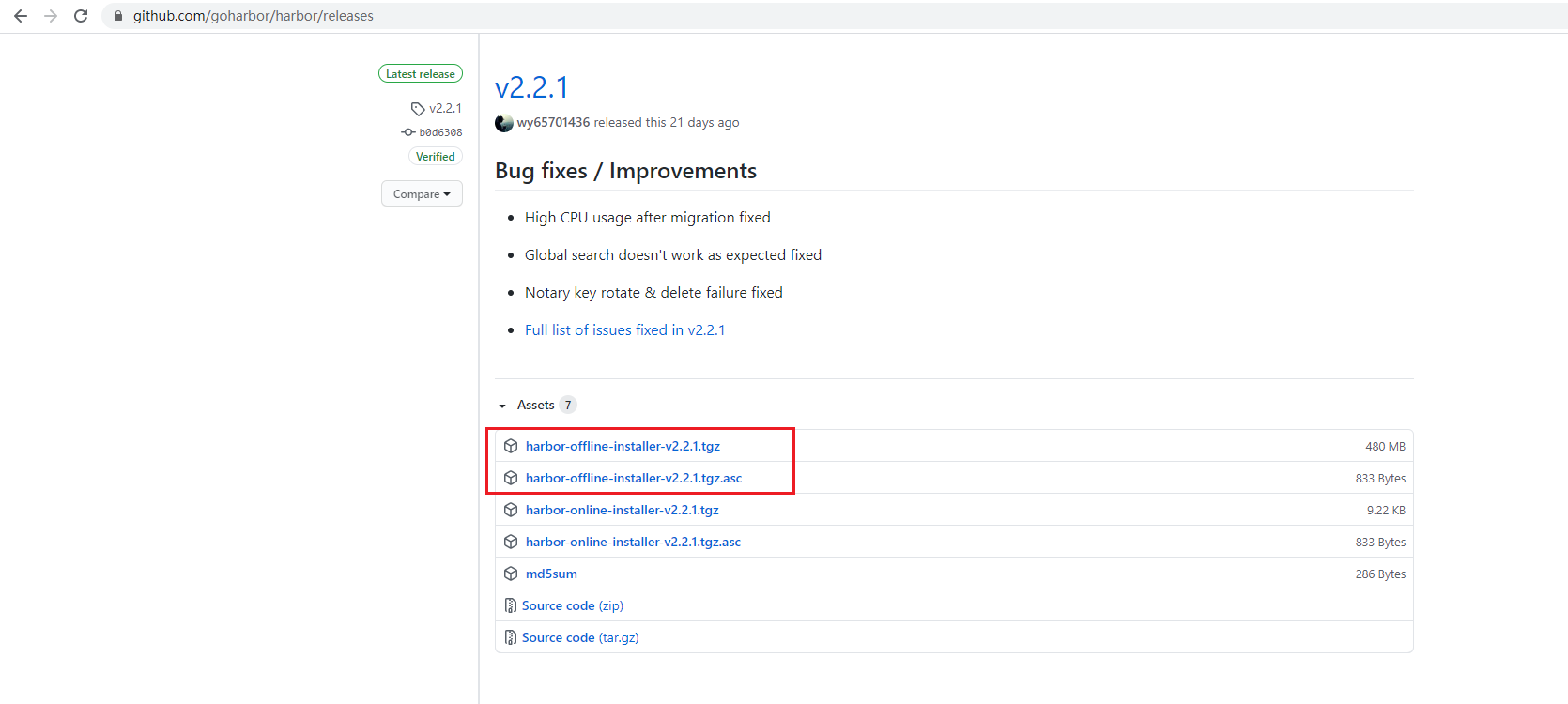

下载 harbor2.2.1 离线安装包 HarborGetStart.png
